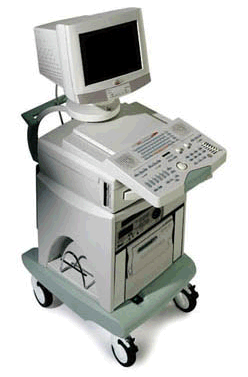

EsaTune
www.esaote.com/products/ultrasound/esatune/products1.htm From ESAOTE S.p.A.;
'The AU5 EPI is an ultrasound system for multi-disciplinary use that incorporates all the transducer technologies (linear, convex, phased array, and annular array) adapted to today's most diverse diagnostic requirements. Furthermore it offers the most modern and advanced techniques available today on the market.'

• View DATABASE results for 'EsaTune' (2).Open this link in a new window.
EUB-2000 B/W (Dop)
www.hitachimed.com/products/ultrasound/eub_2000.asp From Hitachi Medical Systems America Inc.;
The EUB-2000 B/W is a compact system capable of B-mode, M-mode, and optional with grayscale Doppler (EUB-2000 B/W Dop). This unit features intuitive operation, high mobility, and exceptional image quality. When color Doppler is not required, this system is an excellent choice for general purpose scanning.

Device Information and Specification
APPLICATIONS
General purpose, OB/GYN, EUS, brachytherapy
CONFIGURATION
Compact system
RANGE OF PROBE TYPE
Linear, convex, radial, bi-plane, echoendoscope longitudinal
PROBE PORTS
Two
B-mode, M-mode, simultaneous B/M-mode
IMAGING OPTIONS
Simultaneous imaging with biplane probes
ADDITIONAL FEATURES
Cine / multi memory, application specific measuring, etc.
OPTIONAL PACKAGE
PW/CW Doppler and auto-trace measurement (EUB-2000 B/W Dop), triple probe connector, digital image transfer, ECG/PCG module
• View DATABASE results for 'EUB-2000 B/W (Dop)' (2).Open this link in a new window.
EUB-405 PLUS
www.hitachimed.com/products/ultrasound/eub_405.asp From Hitachi Medical Systems America Inc.;
The EUB-405 PLUS ultrasound system is a small portable unit and offers extreme dependability and uncompromising image quality. Compatible with a wide range of transducers, this system is a cost effective solution for a variety of clinical settings. A variety of measurements and calculations including distance, area, circumference, volume, are possible.
Device Information and Specification
APPLICATIONS
General purpose, OB, urological
CONFIGURATION
Compact portable system
RANGE OF PROBE TYPE
Linear, convex, radial, bi-plane, echoendoscope longitudinal
PROBE PORTS
One
B-mode, M-mode, simultaneous B/M-mode
OPTIONAL PACKAGE
Cine/multi-memory, digital image storage and transfer via flashcard, cart, second port
WEIGHT
Less than 14 kg
• View DATABASE results for 'EUB-405 PLUS' (3).Open this link in a new window.
EUB-500
www.hmse-cms.com/us_probsys_systems.php?sysId=1 From Hitachi Medical Systems America Inc.;
The EUB-500 is similar to the EUB-405 PLUS. Added features are the 12-inch monitor, the second probe port, cine memory, gain slide control/multifunction trackball.
Device Information and Specification
APPLICATIONS
General purpose, OB, urological
CONFIGURATION
Compact portable system
RANGE OF PROBE TYPE
Linear, convex, radial, bi-plane, echoendoscope longitudinal
PROBE PORTS
Two
B-mode, M-mode, simultaneous B/M-mode
OPTIONAL PACKAGE
Multi-memory, digital image storage and transfer via flashcard, cart
WEIGHT
Less than 14 kg
• View DATABASE results for 'EUB-500' (2).Open this link in a new window.
EUB-525 CFM
www.hitachimed.com/products/ultrasound/eub_525.asp Hitachi Medical Systems America Inc.;
The EUB-525 is a mid-size ultrasound system with a full feature set. Capable of B-mode, M-mode, Doppler, color flow and color angiography it performs a variety of tasks in a simple and straightforward fashion. This system produces high quality images with excellent clarity and detail.

Device Information and Specification
CLINICAL APPLICATION
CONFIGURATION
Compact, mobile system
RANGE OF PROBE TYPE
Linear, convex, radial, miniradial/miniprobe, bi-plane, echoendoscope longitudinal, echoendoscope radial
PROBE PORTS
Three
B/M-mode/simultaneous B/M-mode, CFM/CFA (color flow angiography)
IMAGING OPTIONS
Simultaneous imaging with biplane probes
OPTIONAL PACKAGE
3D imaging module, digital image transfer, ECG/PCG module
IMAGING ENHANCEMENTS
Half-pitch scanning, dual scan line density, scan correlation and averaging, selectable receive filters
• View DATABASE results for 'EUB-525 CFM' (2).Open this link in a new window.
