From Hitachi Medical Systems America Inc.;The EUB-2000 B/W is a compact system capable of B-mode, M-mode, and optional with grayscale Doppler (EUB-2000 B/W Dop). This unit features intuitive operation, high mobility, and exceptional image quality. When color Doppler is not required, this system is an excellent choice for general purpose scanning. Device Information and Specification
APPLICATIONS
General purpose, OB/GYN, EUS, brachytherapy
CONFIGURATION
Compact system
Triple frequency
Linear, convex, radial, bi-plane, echoendoscope longitudinal
PROBE PORTS
Two
IMAGING OPTIONS
Simultaneous imaging with biplane probes
ADDITIONAL FEATURES
Cine / multi memory, application specific measuring, etc.
•
From Hitachi Medical Systems America Inc.;The EUB-405 PLUS ultrasound system is a small portable unit and offers extreme dependability and uncompromising image quality. Compatible with a wide range of transducers, this system is a cost effective solution for a variety of clinical settings. A variety of measurements and calculations including distance, area, circumference, volume, are possible. Device Information and Specification
APPLICATIONS
General purpose, OB, urological
CONFIGURATION
Compact portable system
Dual frequency
Linear, convex, radial, bi-plane, echoendoscope longitudinal
PROBE PORTS
One
OPTIONAL PACKAGE
Cine/multi-memory, digital image storage and transfer via flashcard, cart, second port
WEIGHT
Less than 14 kg
•
Equipment Preparation is an essential step in ensuring optimal ultrasound imaging quality and maintaining a safe and hygienic scanning environment. The following considerations should be taken into account:
•
Ultrasound Machine Warm-Up: The ultrasound scanner should be turned on and allowed to warm up for at least 5 minutes before initiating the examination. This allows the system to stabilize and ensures consistent performance. •
Transducer Selection: The appropriate pobe should be selected based on the type of examination required, as well as the patient's body size, weight, and habitus. Different transducer offer varying frequencies, field of view, and imaging capabilities, allowing for tailored imaging based on the specific clinical needs. •
Power Settings and Techniques: Prior to beginning the examination, it is crucial to verify and adjust the power settings and imaging techniques according to the examination protocol. This ensures that the ultrasound machine is optimized for the specific diagnostic requirements •
Acoustic Couplant Application: An adequate amount of acoustic couplant, such as warmed ultrasound gel, should be applied to the patient's skin or the transducer surface. This gel serves as a medium that promotes maximum transmission of the sound beam by eliminating air interfaces, leading to improved image quality. •
Transducer Cleaning and Probe Covers: All transducers should be cleaned and readily available for use with each patient. While endocavitary ultrasound probes are often protected by single-use disposable probe covers, it is important to maintain proper hygiene by performing a high-level disinfection of the probe between each use. Additionally, using a probe cover as an additional measure can help keep the probe clean and minimize the risk of cross-contamination. By following these equipment preparation guidelines, healthcare professionals can ensure accurate and safe ultrasound examinations while promoting infection control measures and maintaining a hygienic environment for both patients and staff. See also Environmental Protection, Portable Ultrasound Machine, Ultrasound Accessories and Supplies, and Ultrasound System Performance. •

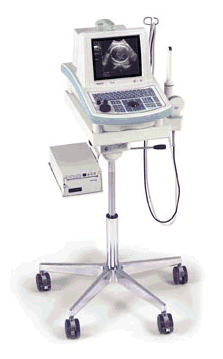

From ESAOTE S.p.A.;'The Aquila offers health care professionals worldwide a high quality, practical black & white ultrasound scanner. The Aquila provides the image quality needed to make reliable diagnoses, while remaining easy to operate and transport, features necessary in the busy environment of the modern General/Family Medicine or OB/GYN practice.' •
From Philips Medical Systems;'The HDI 4000 system brings the track record of our patented High Definition Imaging to your lab, along with 4D imaging technology and new, innovative data management tools. Premium features create images of exceptional clarity, aiding in the visualization of subtle anatomy and pathology. This blend of features never before offered on a system in this price range, combined with superb image quality, makes the HDI 4000 the best choice in its category.' Specifications for this system will be available soon. Result Pages : | Share This Page     Look Ups |
