From Biosound Esaote, Inc.;

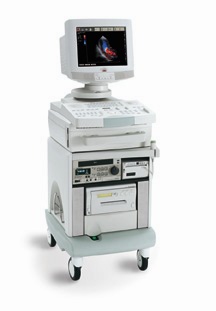

'The new, more powerful Megas ES is a technologically advanced ultrasound system in a highly portable package. Offering options such as CnTI™ software to support contrast agents and DICOM connectivity and storage for film-less, tape-less diagnostic services, Megas ES is the practical alternative for today's demanding diagnostic needs.'

Specifications for this system will be available soon.

The gas in microbubbles is highly compressible and, when subjected to the alternating compression and refraction pressures that constitute an ultrasound pulse, microbubbles oscillate at their natural frequency at which they resonate most strongly. This is determined by their size but is also influenced by the composition of the filling gas.
Air, sulfur hexafluoride, nitrogen, and perfluorochemicals are used as filling gases. Most newer ultrasound contrast agents use perfluorochemicals because of their low solubility in blood and high vapor pressure. By substituting different types of perfluorocarbon gases for air, the stability and plasma longevity of the agents have been markedly improved, usually lasting more than five minutes.

The first generation ultrasound contrast agents (UCA/USCA) do not pass the pulmonary vascular bed, and are therefore limited to the venous system and the right heart cavities after intravenous injection.

Gray scale [also grayscale, grey scale = brit.] produces basically black and white images with series of shades of gray. Solid areas appear white and fluid areas appear black, varying from black at the weakest intensity to white at the strongest. Gray scale resolves artifacts as small as 1 mm. The display is made by transmitting bursts of energy and analyzing the returning signal. Gray scale pictures are limited to the gray scale tones; color pictures display more information because the color is added to the gray scale.
Most ultrasound contrast agents also improve gray scale visualization of the flowing blood to such a degree that the tissue echogenicity increases. Gray scale enhancement of flow in an organ promises to improve lesion detection, along with the ability to differentiate between normal and abnormal areas, using many of the criteria already routinely used in CT and MRI.

See also Compress, Densitometry, Triplex Exam and QB-Mode.

Harmonic B-mode imaging takes advantage of the non-linear oscillation of microbubbles. During harmonic imaging, the sound signal is transmitted at a frequency of around 1.5 to 2.0 MHz and received at twice this frequency. The microbubbles also reflect waves with wavelengths different from the transmitted one, the detectors can be set to receive only the latter ones and create only images of the contrast agent.
Using bandpass filters the transmitted frequency is separated from the received signal to get improved visualization of vessels containing ultrasound contrast agents (USCAs). The signal to noise ratio during the presence of microbubbles in tissue is four- to fivefold higher at the harmonic compared with the basic frequency.
Using harmonic B-mode imaging, harmonic frequencies produced by the ultrasound propagation through tissue have to be taken into account. The tissue reflection produces only a small amount harmonic energy compared to USCAs, but has to be removed by background subtraction for quantitative evaluation of myocardial perfusion.

See also Non-linear Propagation.
